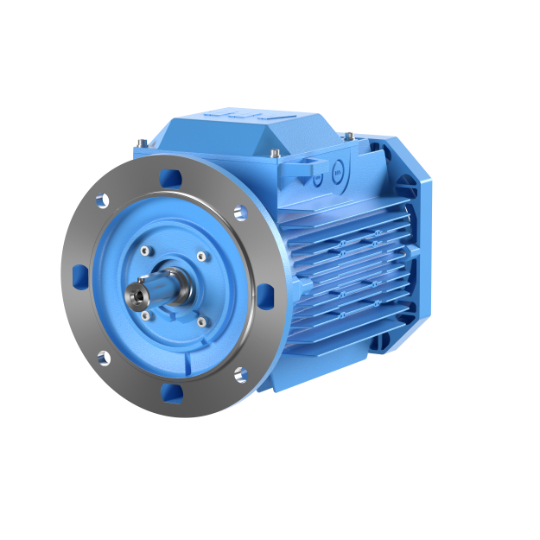

M3AA 132SD 2 - Process performance aluminum motor, class efficiency IE3, 2 poles, 9,2 kW, High-output design
M3AA 132SD 2 - Process performance aluminum motor, class efficiency IE3, 2 poles, 9,2 kW, High-output design
M3AA 132SD 2 - Process performance aluminum motor, class efficiency IE3, 2 poles, 9,2 kW, High-output design
PN: 3GAA131140-••K
|
Motor type
|
M3AA 132SD 2 |
|---|---|
|
Output (kW)
|
9,2 |
|
Poles
|
2 |
|
Efficiency class according to IEC 60034-30-1; 2014
|
IE3 |
|
IEC size (shaft height)
|
132 |
|
Frame material
|
aluminum |
|
Enclosure
|
IP55 |
|
Design
|
High-output design |
|
Insulation class
|
F |
|
Cooling Method
|
IC 411 |
|
Weight (kg)
|
71 |
|
Voltage Un
|
400V 50Hz |
|
Speed (r/min) Un=400V 50Hz
|
2910 |
|
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz
|
90,7 |
|
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz
|
91,7 |
|
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz
|
91,7 |
|
Power factor Cos φ Un=400V 50Hz
|
0,9 |
|
Current In (A) Un=400V 50Hz
|
15,9 |
|
Current Is/In Un=400V 50Hz
|
8,2 |
|
Torque TN (Nm) Un=400V 50Hz
|
29,9 |
|
Torque TI/TN Un=400V 50Hz
|
3,4 |
|
Torque Tb/TN Un=400V 50Hz
|
4,3 |
|
Moment of inertia J = 1/4 GD2kgm2
|
0,0168 |
|
Sound pressure Level LPA (dB) Un=400V 50Hz
|
75 |
|
Temperature rise class Un=400V 50Hz
|
B |
