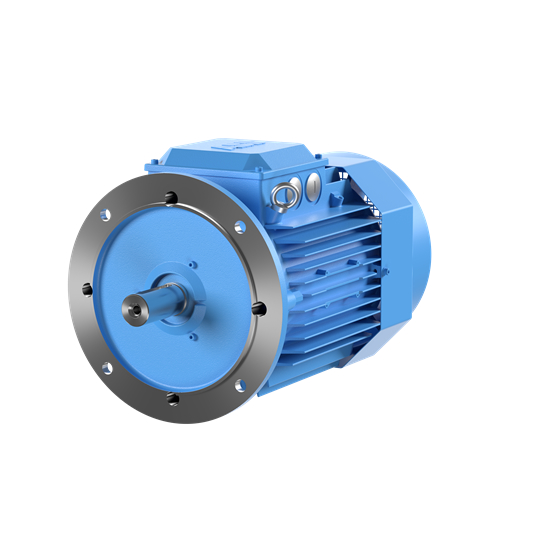

M3BP 132SMF 4 - Process performance cast iron motor, class efficiency IE3, 4 poles, 5,5 kW, CENELEC

PN: 3GBP132260-••K

Motor type	M3BP 132SMF 4
Output (kW)	5,5
Poles	4
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	132
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	1463
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	89,6
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	89,8
Weight (kg)	81
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	88,7
Power factor Cos φ Un=400V 50Hz	0,74
Current In (A) Un=400V 50Hz	11,9
Current Is/In Un=400V 50Hz	7,6
Torque TN (Nm) Un=400V 50Hz	36
Torque TI/TN Un=400V 50Hz	2,8
Torque Tb/TN Un=400V 50Hz	3,9
Moment of inertia J = 1/4 GD2kgm2	0,0295
Sound pressure Level LPA (dB) Un=400V 50Hz	70
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	1767
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	91,7
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	91,1
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	89,6
Power factor Cos φ Un=460V 60Hz	0,73
Current In (A) Un=460V 60Hz	10,4
Current Is/In Un=460V 60Hz	8,7
Torque TN (Nm) Un=460V 60Hz	29,8
Torque TI/TN Un=460V 60Hz	3
Torque Tb/TN Un=460V 60Hz	4,5
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	0,0295
Sound pressure Level LPA (dB) Un=460V 60Hz	73
Temperature rise class Un=460V 60Hz	B
