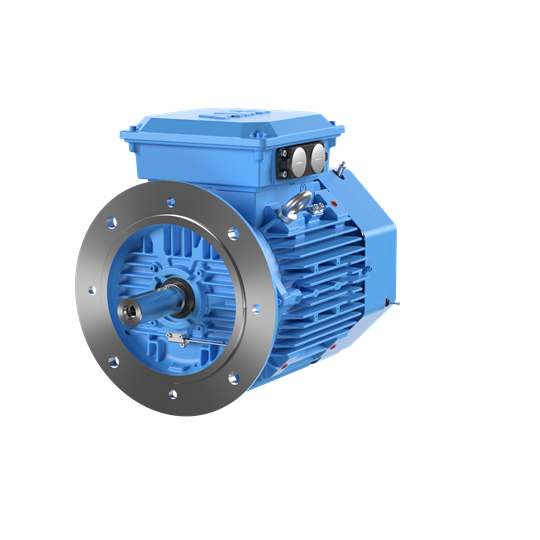

M3BP 160MLA 4 - Process performance cast iron motor, class efficiency IE3, 4 poles, 11 kW, CENELEC

PN: 3GBP162410-••K

Motor type	M3BP 160MLA 4
Output (kW)	11
Poles	4
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	160
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	1477
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	91,4
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	91,8
Weight (kg)	188
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	91,1
Power factor Cos φ Un=400V 50Hz	0,82
Current In (A) Un=400V 50Hz	21,1
Current Is/In Un=400V 50Hz	7,6
Torque TN (Nm) Un=400V 50Hz	71,3
Torque TI/TN Un=400V 50Hz	2,6
Torque Tb/TN Un=400V 50Hz	3,3
Moment of inertia J = 1/4 GD2kgm2	0,11
Sound pressure Level LPA (dB) Un=400V 50Hz	61
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	1780
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	92,4
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	92,2
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	90,9
Power factor Cos φ Un=460V 60Hz	0,8
Current In (A) Un=460V 60Hz	18,9
Current Is/In Un=460V 60Hz	8,7
Torque TN (Nm) Un=460V 60Hz	59,1
Torque TI/TN Un=460V 60Hz	3,4
Torque Tb/TN Un=460V 60Hz	3,7
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	0,11
Sound pressure Level LPA (dB) Un=460V 60Hz	68
Temperature rise class Un=460V 60Hz	B
