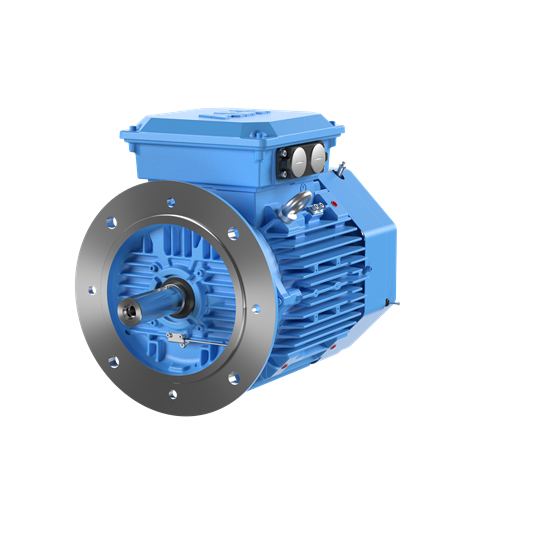

M3BP 180MLA 4 - Process performance cast iron motor, class efficiency IE3, 4 poles, 18,5 kW, CENELEC

PN: 3GBP182410-••K

Motor type	M3BP 180MLA 4
Output (kW)	18,5
Poles	4
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	180
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	1481
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	92,6
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	93,2
Weight (kg)	235
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	92,9
Power factor Cos φ Un=400V 50Hz	0,83
Current In (A) Un=400V 50Hz	34,9
Current Is/In Un=400V 50Hz	7,2
Torque TN (Nm) Un=400V 50Hz	119
Torque TI/TN Un=400V 50Hz	2,8
Torque Tb/TN Un=400V 50Hz	3
Moment of inertia J = 1/4 GD2kgm2	0,219
Sound pressure Level LPA (dB) Un=400V 50Hz	60
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	1783
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	93,6
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	93,7
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	92,9
Power factor Cos φ Un=460V 60Hz	0,82
Current In (A) Un=460V 60Hz	30,3
Current Is/In Un=460V 60Hz	8,4
Torque TN (Nm) Un=460V 60Hz	99
Torque TI/TN Un=460V 60Hz	3,1
Torque Tb/TN Un=460V 60Hz	3,5
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	0,219
Sound pressure Level LPA (dB) Un=460V 60Hz	67,8
Temperature rise class Un=460V 60Hz	B
