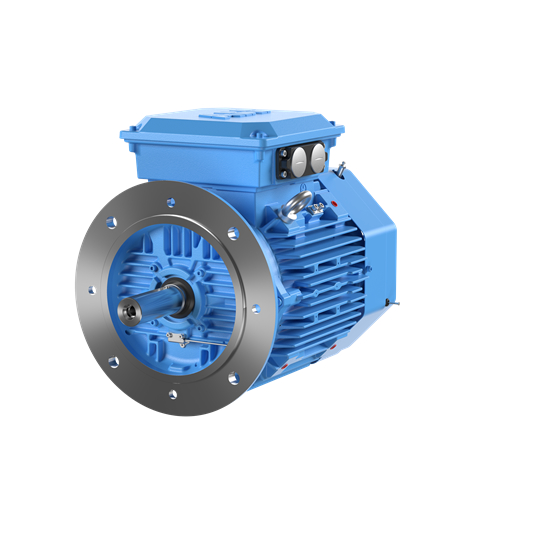

M3BP 180MLC 2 - Process performance cast iron motor, class efficiency IE3, 2 poles, 37 kW, High-output design

PN: 3GBP181430-••K

Motor type	M3BP 180MLC 2
Output (kW)	37
Poles	2
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	180
Frame material	cast iron
Enclosure	IP55
Design	High-output design
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	2950
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	93,7
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	94,2
Weight (kg)	229
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	94,2
Power factor Cos φ Un=400V 50Hz	0,86
Current In (A) Un=400V 50Hz	66
Current Is/In Un=400V 50Hz	8,5
Torque TN (Nm) Un=400V 50Hz	120
Torque TI/TN Un=400V 50Hz	3,4
Torque Tb/TN Un=400V 50Hz	4,3
Moment of inertia J = 1/4 GD2kgm2	0,117
Sound pressure Level LPA (dB) Un=400V 50Hz	74
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	3564
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	93
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	93,2
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	92,7
Power factor Cos φ Un=460V 60Hz	0,86
Current In (A) Un=460V 60Hz	57
Current Is/In Un=460V 60Hz	9,7
Torque TN (Nm) Un=460V 60Hz	99,1
Torque TI/TN Un=460V 60Hz	3,8
Torque Tb/TN Un=460V 60Hz	4,7
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	0,117
Sound pressure Level LPA (dB) Un=460V 60Hz	77
Temperature rise class Un=460V 60Hz	B
