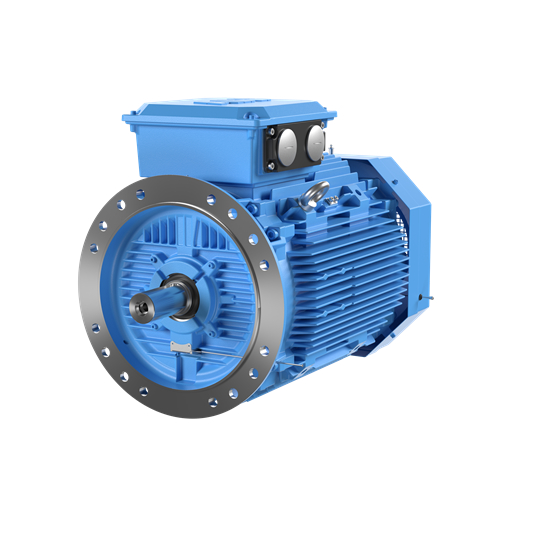

M3BP 200MLB 2 - Process performance cast iron motor, class efficiency IE3, 2 poles, 37 kW, CENELEC

PN: 3GBP201420-••K

Motor type	M3BP 200MLB 2
Output (kW)	37
Poles	2
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	200
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Weight (kg)	314
Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	2959
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	93,7
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	93,7
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	92,7
Power factor Cos φ Un=400V 50Hz	0,9
Current In (A) Un=400V 50Hz	63,5
Current Is/In Un=400V 50Hz	8,2
Torque TN (Nm) Un=400V 50Hz	119
Torque TI/TN Un=400V 50Hz	3
Torque Tb/TN Un=400V 50Hz	3,3
Moment of inertia J = 1/4 GD2kgm2	0,196
Sound pressure Level LPA (dB) Un=400V 50Hz	72
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	3564
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	93
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	92,8
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	91,1
Power factor Cos φ Un=460V 60Hz	0,89
Current In (A) Un=460V 60Hz	55,8
Current Is/In Un=460V 60Hz	9,2
Torque TN (Nm) Un=460V 60Hz	99,1
Torque TI/TN Un=460V 60Hz	3,1
Torque Tb/TN Un=460V 60Hz	3,7
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	0,196
Sound pressure Level LPA (dB) Un=460V 60Hz	76
Temperature rise class Un=460V 60Hz	B
