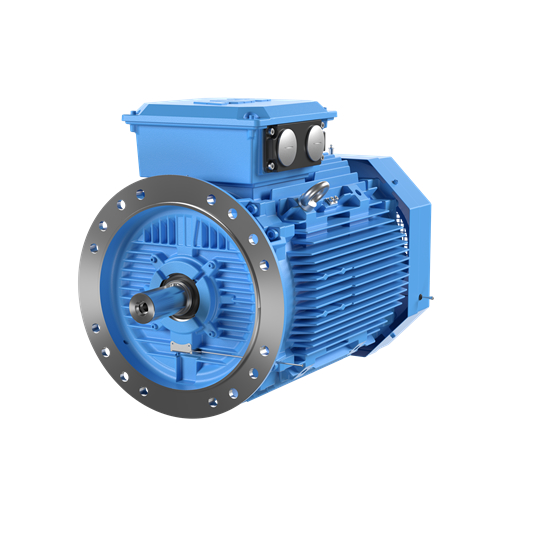

M3BP 200MLC 2 - Process performance cast iron motor, class efficiency IE3, 2 poles, 45 kW, High-output design

PN: 3GBP201430-••K

Motor type	M3BP 200MLC 2
Output (kW)	45
Poles	2
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	200
Frame material	cast iron
Enclosure	IP55
Design	High-output design
Insulation class	F
Cooling Method	IC 411

Weight (kg)	305
Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	2956
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	94
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	94,6
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	94,8
Power factor Cos φ Un=400V 50Hz	0,89
Current In (A) Un=400V 50Hz	77,2
Current Is/In Un=400V 50Hz	7,8
Torque TN (Nm) Un=400V 50Hz	145
Torque TI/TN Un=400V 50Hz	2,9
Torque Tb/TN Un=400V 50Hz	3,3
Moment of inertia J = 1/4 GD2kgm2	0,216
Sound pressure Level LPA (dB) Un=400V 50Hz	77
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	3563
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	93,6
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	93,9
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	93,7
Power factor Cos φ Un=460V 60Hz	0,89
Current In (A) Un=460V 60Hz	66,8
Current Is/In Un=460V 60Hz	8,7
Torque TN (Nm) Un=460V 60Hz	121
Torque TI/TN Un=460V 60Hz	3,2
Torque Tb/TN Un=460V 60Hz	3,7
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	0,216
Sound pressure Level LPA (dB) Un=460V 60Hz	80
Temperature rise class Un=460V 60Hz	B
