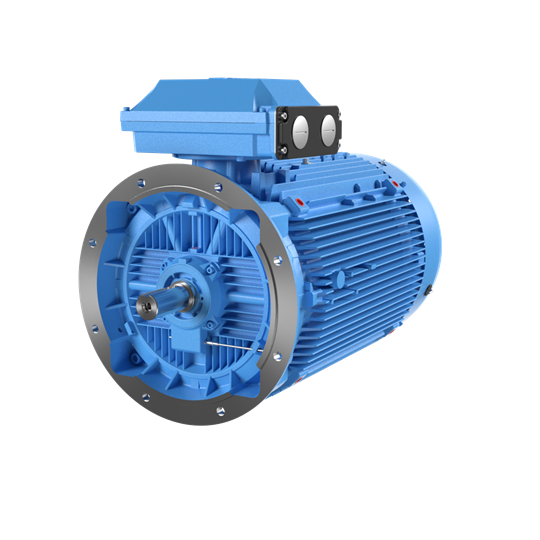

M3BP 315LKA 6 - Process performance cast iron motor, class efficiency IE2, 6 poles, 160 kW, High-output design

PN: 3GBP313810-••G

Motor type	M3BP 315LKA 6
Output (kW)	160
Poles	6
Efficiency class according to IEC 60034-30-1; 2014	IE2
IEC size (shaft height)	315
Frame material	cast iron
Enclosure	IP55
Design	High-output design
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	992
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	95,3
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	95,3
Weight (kg)	1410
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	94,7
Power factor Cos φ Un=400V 50Hz	0,83
Current In (A) Un=400V 50Hz	291
Current Is/In Un=400V 50Hz	7,5
Torque TN (Nm) Un=400V 50Hz	1540
Torque TI/TN Un=400V 50Hz	2,6
Torque Tb/TN Un=400V 50Hz	2,8
Moment of inertia J = 1/4 GD2kgm2	7,3
Sound pressure Level LPA (dB) Un=400V 50Hz	74
Temperature rise class Un=400V 50Hz	B
