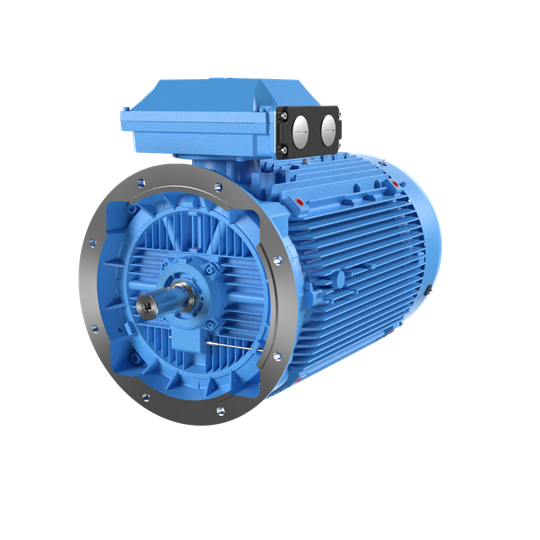

M3BP 355LKA 2 - Process performance cast iron motor, class efficiency IE3, 2 poles, 500 kW, CENELEC

PN: 3GBP351810-••K

Motor type	M3BP 355LKA 2
Output (kW)	500
Poles	2
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	355
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	2982
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	95,8
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	95,8
Weight (kg)	2320
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	95,3
Power factor Cos φ Un=400V 50Hz	0,9
Current In (A) Un=400V 50Hz	827
Current Is/In Un=400V 50Hz	7,5
Torque TN (Nm) Un=400V 50Hz	1601
Torque TI/TN Un=400V 50Hz	2
Torque Tb/TN Un=400V 50Hz	3,9
Moment of inertia J = 1/4 GD2kgm2	4,8
Sound pressure Level LPA (dB) Un=400V 50Hz	83
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	3584
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	95,8
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	95,5
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	94,5
Power factor Cos φ Un=460V 60Hz	0,9
Current In (A) Un=460V 60Hz	722
Current Is/In Un=460V 60Hz	9
Torque TN (Nm) Un=460V 60Hz	1332
Torque TI/TN Un=460V 60Hz	2,4
Torque Tb/TN Un=460V 60Hz	4,3
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	4,8
Sound pressure Level LPA (dB) Un=460V 60Hz	88
Temperature rise class Un=460V 60Hz	B
