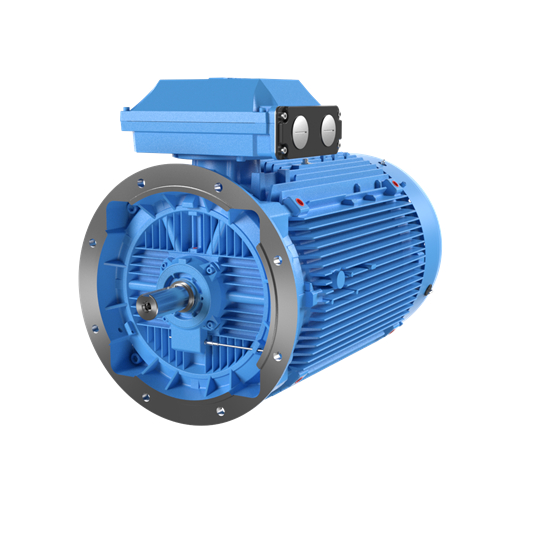

M3BP 355LKB 4 - Process performance cast iron motor, class efficiency IE3, 4 poles, 560 kW, CENELEC

PN: 3GBP352820-••K

Motor type	M3BP 355LKB 4
Output (kW)	560
Poles	4
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	355
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	1490
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	96
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	96
Weight (kg)	2600
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	95,5
Power factor Cos φ Un=400V 50Hz	0,85
Current In (A) Un=400V 50Hz	981
Current Is/In Un=400V 50Hz	7,2
Torque TN (Nm) Un=400V 50Hz	3588
Torque TI/TN Un=400V 50Hz	2,6
Torque Tb/TN Un=400V 50Hz	2,7
Moment of inertia J = 1/4 GD2kgm2	10,6
Sound pressure Level LPA (dB) Un=400V 50Hz	78
Temperature rise class Un=400V 50Hz	B
Remark Un=400V 50Hz	3)

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	1791
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	96,2
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	95,9
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	95,3
Power factor Cos φ Un=460V 60Hz	0,85
Current In (A) Un=460V 60Hz	858
Current Is/In Un=460V 60Hz	8,5
Torque TN (Nm) Un=460V 60Hz	2988
Torque TI/TN Un=460V 60Hz	2,8
Torque Tb/TN Un=460V 60Hz	2,9
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	10,6
Sound pressure Level LPA (dB) Un=460V 60Hz	83
Temperature rise class Un=460V 60Hz	B
Remark Un=460V 60Hz	3)
