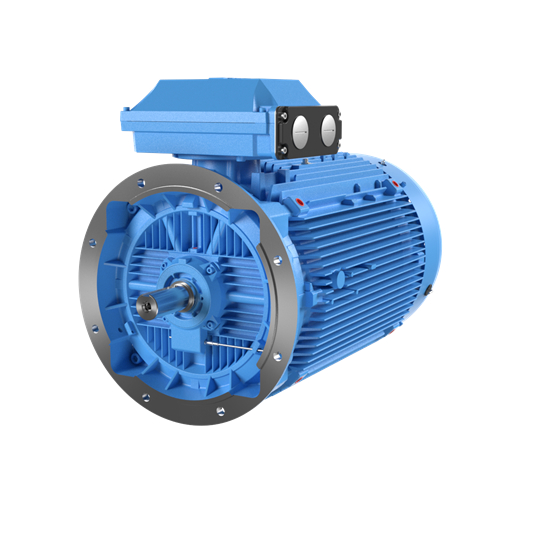

M3BP 355MLC 2 - Process performance cast iron motor, class efficiency IE3, 2 poles, 450 kW, CENELEC

PN: 3GBP351430-••K

Motor type	M3BP 355MLC 2
Output (kW)	450
Poles	2
Efficiency class according to IEC 60034-30-1; 2014	IE3
IEC size (shaft height)	355
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	2983
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	95,8
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	95,8
Weight (kg)	2080
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	95
Power factor Cos φ Un=400V 50Hz	0,9
Current In (A) Un=400V 50Hz	743
Current Is/In Un=400V 50Hz	7,9
Torque TN (Nm) Un=400V 50Hz	1440
Torque TI/TN Un=400V 50Hz	2,2
Torque Tb/TN Un=400V 50Hz	2,9
Moment of inertia J = 1/4 GD2kgm2	4,3
Sound pressure Level LPA (dB) Un=400V 50Hz	83
Temperature rise class Un=400V 50Hz	B

Voltage Un	460V 60Hz
Speed (r/min) Un=460V 60Hz	3585
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=460V 60Hz	95,8
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=460V 60Hz	95,4
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=460V 60Hz	94,3
Power factor Cos φ Un=460V 60Hz	0,9
Current In (A) Un=460V 60Hz	650
Current Is/In Un=460V 60Hz	8,9
Torque TN (Nm) Un=460V 60Hz	1199
Torque TI/TN Un=460V 60Hz	2,2
Torque Tb/TN Un=460V 60Hz	3,2
Moment of inertia J = 1/4 GD2kgm2 Un=460V 60Hz	4,3
Sound pressure Level LPA (dB) Un=460V 60Hz	88
Temperature rise class Un=460V 60Hz	B
Remark Un=460V 60Hz	3)
