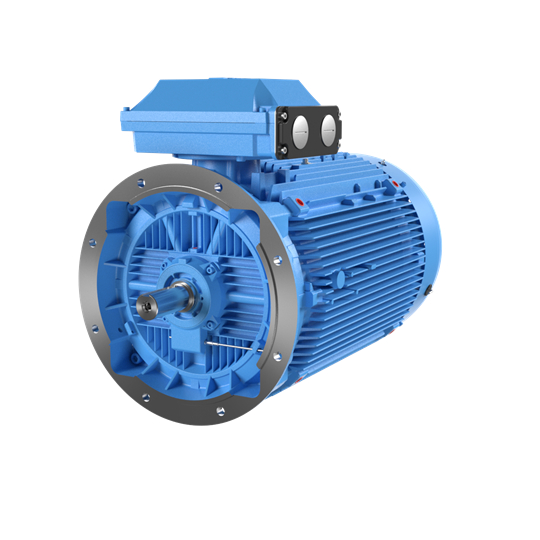

M3BP 355SMB 12 - Process performance cast iron motor, class efficiency IE2, 12 poles, 110 kW, CENELEC

PN: 3GBP356220-••G

Motor type	M3BP 355SMB 12
Output (kW)	110
Poles	12
Efficiency class according to IEC 60034-30-1; 2014	IE2
IEC size (shaft height)	355
Frame material	cast iron
Enclosure	IP55
Design	CENELEC
Insulation class	F
Cooling Method	IC 411

Weight (kg)	1680
Voltage Un	400V 50Hz
Speed (r/min) Un=400V 50Hz	495
Efficiency IEC 60034-30-1: 2014 Full load 100% Un=400V 50Hz	93,8
Efficiency IEC 60034-30-1: 2014 >3/4 load 75% Un=400V 50Hz	93,8
Efficiency IEC 60034-30-1: 2014 1/2 load 50% Un=400V 50Hz	92,7
Power factor Cos φ Un=400V 50Hz	0,71
Current In (A) Un=400V 50Hz	238
Current Is/In Un=400V 50Hz	6
Torque TN (Nm) Un=400V 50Hz	2122
Torque TI/TN Un=400V 50Hz	1,4
Torque Tb/TN Un=400V 50Hz	2,5
Moment of inertia J = 1/4 GD2kgm2	9,7
Sound pressure Level LPA (dB) Un=400V 50Hz	75
Temperature rise class Un=400V 50Hz	B
